      Understanding Multiunit Abutment Tops

      Platform Dimensions

      DESS® multiunit abutment tops come in two sizes, regular platform (RP) and wide platform (WP).

      WP is only used in Nobel Brånemark® compatible parts. These abutments require a  Final DLC Multiunit (WP) Screw with their 5.0mmD.





      RP multiunit abutment tops have a 4.8mmD and use M1.4 screw threads. Systems with this platform type include:

                • 3i Biomet Certain® Low Profile
                • 3i Osseotite® External Hex
                • Astra EV® Multibase
                • Blue Sky Bio® (BSB)
                • BioHorizons® Internal Hex
                • BioHorizons® External Hex
                • DESS® Multiunits
                • Hahn™
                • Hiossen®
                • Megagen Anyridge®
                • Neodent GM®
                • Nobel Active®
                • Nobel Brånemark®
                • Nobel Replace®
                • Noris Medical®

      Compatible Parts

      Multiunit abutment tops can be found under On Top of Multiunit Components. These parts fit on top of the connections listed above, in addition to Keystone Dental® Group's Genesis and Prima lines.

      Because the Straumann® Screw-retained Abutment (SRA) has slightly different dimensions than the systems listed above, these can be found under On Top of SRA Components.

      Scan Bodies

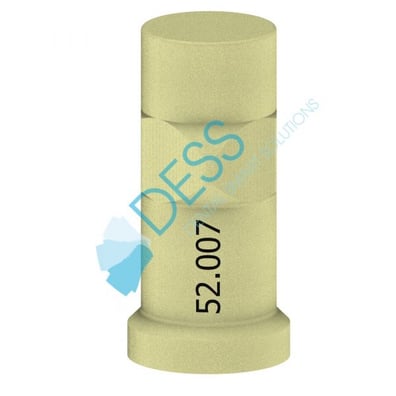

      DESS® has two scan bodies available for multiunit RP abutment tops: Lab and Intraoral. Both scan bodies are reusable and autoclavable, while the intraoral scan body can be used in both the mouth and lab scanner.





      Implant Connections, Screws, & Drivers

      Once you've processed your scan, proceed with one of following:

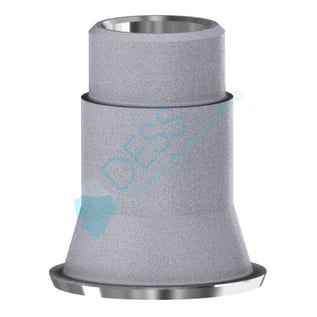

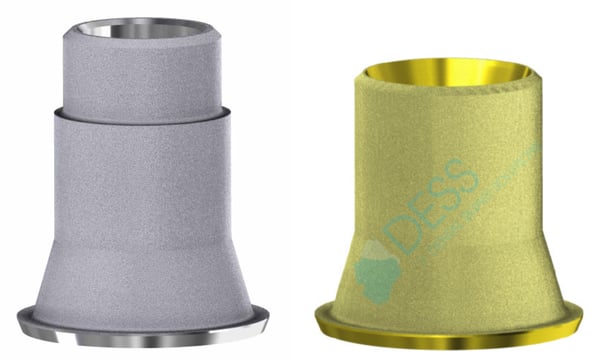

      • DESS® Non Engaging Multiunit Ti Base (RP)

      This item is available in a 6mm or 8mm collar and comes with a . However, any RP screw will work with this unit.

      This Ti Base is compatible with AURUMBase® and comes with an Angulated Multiunit (RP) Screw. An is required for this unit.

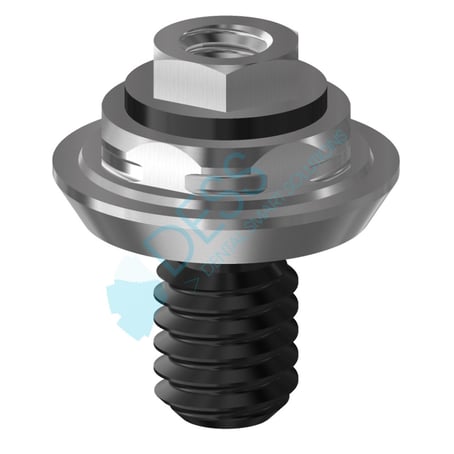

      • Multi Direct or Multiunit Direct

      These are typically used to make a titanium bar that connects directly to the multiunit. The screws and drivers listed below will work for these connections:

      DESS® Final and Final DLC (RP) multiunit screws

      These come individually or in packs of 10. They require a Nobel® Latch Style Driver, which can be ordered on our website in 24mm or 35mm lengths.

      DESS® Angulated Multiunit (RP) Screw

      This connects with the Straumann® Torx Driver or our The ANGLEBase® driver is only needed when angulating the screw access hole.

      .048 Multiunit Hex Screw

      This is used with a .048/1.20mm ( , , ) or .048/1.22mm (Hiossen®) hex latch style driver.

      .050 Final Multiunit Screw

      This unit works with a .050/1.25mm or .050/1.27mm (  EV, , , , , , ) driver.

      • DESS® Multi Temporary

      Restorations of this kind require a Final UniAbutment Screw (this comes as a single unit or in a 10-pack) and .050 hex driver.

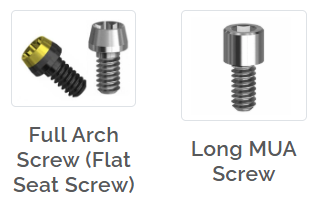

      However, temporary restorations that do not use a Ti Base, along with temporary zirconia crowns and bridges, require a Long Screw for an Angulated Screw Channel (this is sold exclusively as a bulk item in packs of 10) and .

      Although traditional and multiunit screws differ in size, they both must be torqued to 15ncm.



      Libraries

      DESS® has made digital library files available in , , and for the following multiunit top components:

      • Lab scan body
      • Intraoral scan body
      • Scan body on top of engaging/non engaging Ti Bases
      • Straight and Angled Ti Bases

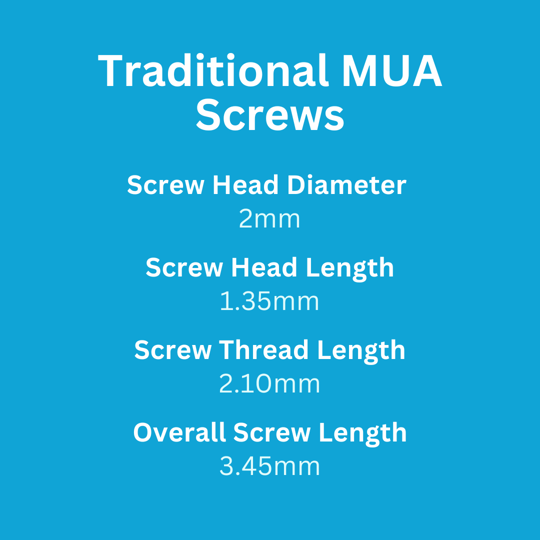

      • Direct to MUA using a traditional screw

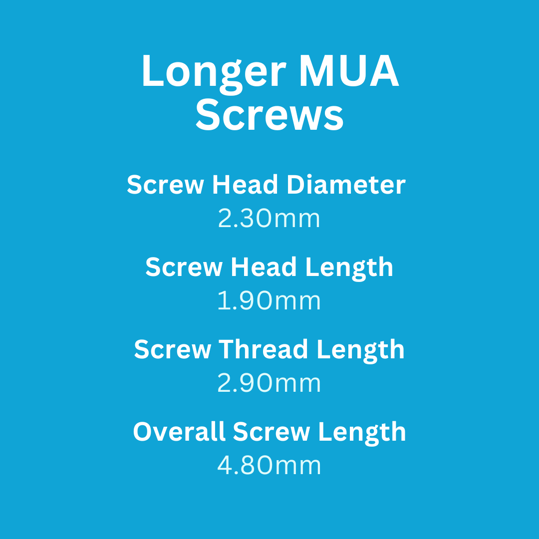

      • Direct to MUA using a longer screw with a wider head (straight and angled access holes)

      If you would like to purchase a multiunit abutment or multiunit abutment top in bulk, contact orders@dess-usa.com.
